The Yngwie Malmsteen Stratocaster is a guitar model designed after the favorite Stratocaster of the Swedish metal virtuoso and neo-classical shred guitar pioneer, Yngwie Malmsteen. In this article you can find Yngwie Malmsteen fender stratocaster wiring diagram for your need.
The Yngwie Malmsteen fender strat features a maple neck with a modern “C” profile and “bullet” truss rod, a scalloped maple or rosewood fingerboard with 21 “super jumbo” frets, Seymour Duncan YJM Fury pickups, a “no-load” tone control, and a vintage-style synchronized tremolo bridge.
The guitar was co-designed with Malmsteen and was released in 1988 as one of the first official Fender signature instruments. It is part of the Fender Custom Artist Collection.
Yngwie Malmsteen Stratocaster Wiring Diagram

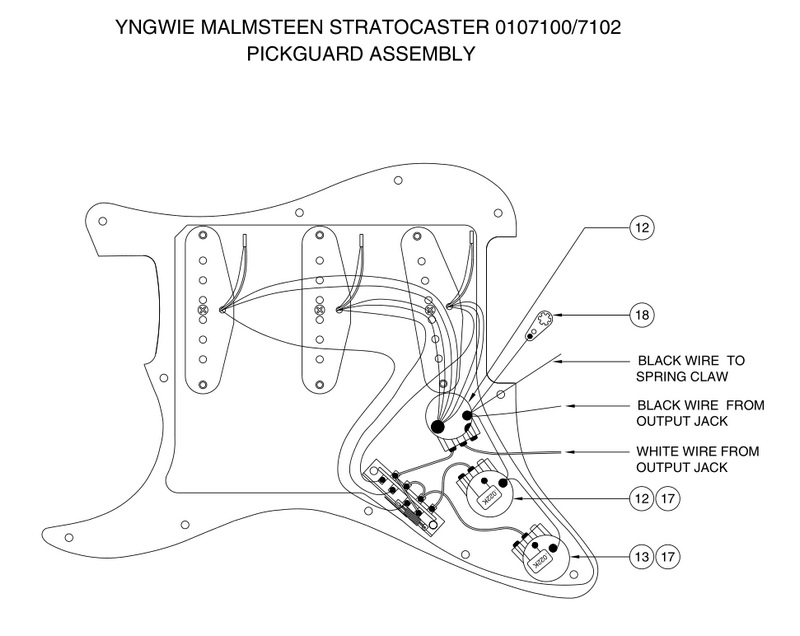

Pickguard assembly.
Bridge assembly schematic
Switch and control function schematic.
| Ref.# | P/N | Description |
|---|---|---|
| 1 | 0053389000 | Neck, ’98 Malmsteen, R/W |
| 0053390000 | Neck, ’98 Malmsteen, M/N | |
| 2 | 0053684000 | Tuning Key, (1) Set |
| 0011357000 | Mounting Screw | |
| 3 | 0029170000 | Brass Nut |
| 4 | 0010389000 | String Retainer |
| 0011358000 | Mounting Screw | |
| 0020423000 | Spacer | |
| 5 | 0020810000 | Truss Rod Adjustment Nut |
| 0038467000 | Truss Rod Adjusting Wrench | |
| 6 | 0053388xxx | Body, ’98 Malmsteen, Solid Paint |
| 7 | 0018353000 | Neck Mounting Plate |
| 0015636000 | Mounting Screw | |
| 8 | 0012344000 | Strap Buttom |
| 0016188000 | Mounting Screw | |
| 9 | 0053690000 | Pickguard, ’98 Malmsteen |
| 0015578000 | Mounting Screw | |
| 10 | 0053392000 | Pickup, Dimarzio YJM (2) w/Mint Green Cover |
| 11 | 0054567000 | Pickup, Dimarzio HS-3 w/Mint Green Cover |
| 0029483000 | Mounting Screw | |
| 0036878000 | Tubing, Latex Cut | |
| 12 | 0013446000 | Control, 250k, Taper |
| 13 | 0050666000 | Control, 250K, Split |
| 0016352000 | Mounting Hex Nut | |
| 0022384000 | Lock Washer, Intl | |
| 14 | 0056145000 | Knob, Volume, Aged White |
| 15 | 0056144000 | Knob, Tone, Aged White, (2) |
| 16 | 0053290000 | Switch, Lever, 3 Position |
| 0015776000 | Mounting Screw | |
| 0053765000 | Knob, Aged White | |
| 17 | 0024832000 | Capacitor, .022uf, (2) |
| 18 | 0012869000 | Solder Lug |
| 0015116000 | Mounting Screw | |
| 19 | 0021956000 | Output Jack |
| 0016352000 | Mounting Hex Nut | |
| 0016436000 | Lock Washer, Intl | |
| 20 | 0010280090 | Jack Ferrule |
| 0015578000 | Mounting Screw | |
| 21 | 0019642000 | Bridge Assembly, Vintage Strat |
| 0016170000 | Mounting Screw | |
| 0019473000 | Bridge Block | |
| 0019656000 | Mounting Screw | |
| 0010272100 | Claw, Tremolo | |
| 0015636000 | Mounting Screw | |
| 0031643000 | Spring, Claw | |
| 0026103000 | Arm, Tremolo | |
| 0019463000 | Knob, Tremolo | |
| 22 | 0019470000 | Bridge Plate |
| 23 | 0019280000 | Bridge Section, (6) |
| 24 | 0015693000 | Intonation Screw, (6) |
| 25 | 0019273000 | Intonation Spring, 5&6 |
| 0019281000 | Intonation Spring, 1-4 | |
| 26 | 0032782000 | Height Adjustment Screw, 1&6 |
| 0016071000 | Height Adjustment Screw, 2-5 | |
| 0018531000 | Height Adjusting Wrench | |
| 27 | 0012180000 | Spring, Tremolo Arm |
| 0019649000 | Back Plate | |
| 0015578000 | Mounting Screw |
Bodypart number
| Color | Number |
|---|---|
| Candy Apple Red | 0053388509 |
| Vintage White | 0053388541 |
| Sonsic Blue | 0053388572 |
Why Yngwie Malmsteen Strat so special
The Yngwie Malmsteen Stratocaster is a guitar model designed to emulate the sound and style of one of the most influential guitarists of all time, Yngwie Malmsteen.
He is known for his neo-classical playing style, characterized by his speed, technique and virtuosity, and his use of the Stratocaster as his main instrument. He is considered as the pioneer of the neo-classical shred genre and has been a major influence for many guitar players.
One of the most notable feature of the Yngwie Malmsteen Stratocaster is its scalloped fingerboard, which is a unique feature that allows for more control over bending and manipulating notes. This feature is closely associated with Malmsteen’s playing style and adds to the overall sound of the guitar.
Additionally, the guitar is equipped with Seymour Duncan YJM Fury pickups which are specially designed to produce a high-performance, responsive set of pickups that reinforce each other. These pickups are considered as one of the best pickups for the guitar and it gives the guitar its unique sound.
The Yngwie Malmsteen Stratocaster is not just for shredders, but for any guitar player looking for an instrument that can bring new life and ideas to their music.
The guitar is a perfect blend of vintage-inspired style and player-oriented enhancements that make it a versatile instrument. It is a must-have for any guitar player who wants to emulate the sound and style of Yngwie Malmsteen.
